Ten-Tec

Ten-Tec is a Tennessee-based company founded by K4FW and K4JU around the time I was born. They designed a modular transceiver, first selling the modules separately (advert from QST, September 1969) -- these modules were the MX1 mixer, the AA1 audio amplifier, the VO1 VFO, and the TX1 crystal oscillator and power amplifier. Put them all in a box and it became the Power Mite PM1 transceiver (advert from QST, November 1969).

Somewhere along the line they also designed a keyer (advert from QST, October 1969).

The modular design was a Ten-Tec thing for many years, with different rigs sharing the same modules, and slightly different modules being interchangeable between different rigs.

In 1971, Ten-Tec introduced the first of many radios to carry the "Argonaut" name. This one was just... the Argonaut. These days it's known as the "Argonaut 505" to distinguish it from the later models.


I started with an Argonaut 505 with the 405 linear and a 250 PSU, back in 1987. Since then my collection has grown a bit.

In 2015/2016/2017 I got hold of three more Argonaut 505s.

Argonaut 505 Serial #1426 (April 2015, April 2017)

I got this one from Vidi la Grange ZS1EL, then he wanted it back, then he fixed the dial and put it on the air, then he got tired of it, then I got it back again :-)

Front view of #1426

It suffers from Dreaded Previous Owner-itis, the DPO obviously liked drilling holes in the front panel. The switch on the top right keys the rig, and the socket between RF and AF gain is a headphone socket, connected to the headphone jack at the back. Both of these could have been fitted in a little box on the side with cables to the rear connector. Also, the speaker wires are cut and connected to an RCA socket -- again a signal available on the rear panel.

While he was there the DPO also notched the top of the front panel for easier access to the VFO inductors -- something you set like once, ever. ¯\_(ツ)_/¯ And he fitted an SO-239 instead of the RCA antenna connector. BNC, I can understand. SO-239? *shudder*

So this is now my donour rig.


Argonaut 505 Serial #825 (May 2015)

Front of #825

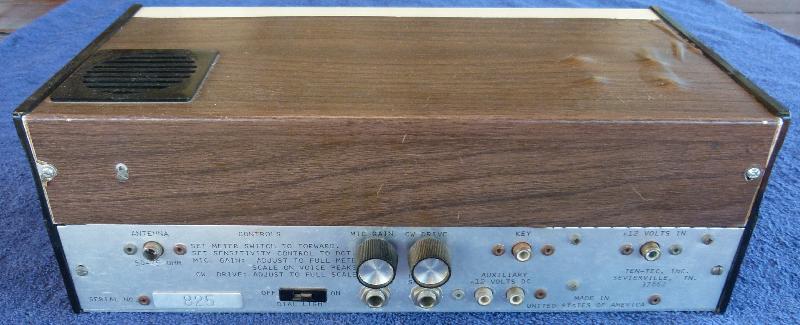

Back of #825

Also from Vidi. Unfortunately the previous owner applied the power barse-ackwards causing some venting of magic smoke.

It is in very nice nick, however :-/

Inside #825
Inside #825
VFO of #825

I think the previous previous owner used this as a mobile rig (there are mounting holes in the side plates) and that's why everything is secured with this brown stuff.

Lid of #825
Also, tuning must have been funny to need these clearance dents for the front end tuning coil adjusters.

Argonaut 505 Serial #824 (April 2017)

Front of #824

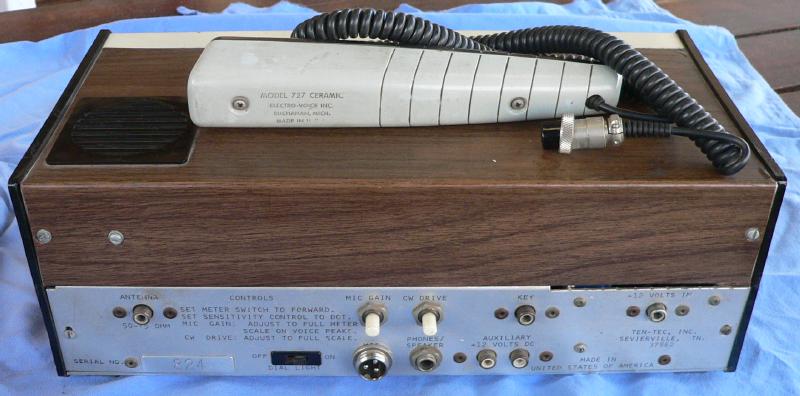

Back of #824

A gift from Vince Harrison ZS6BTY. In very nice nick.

2025-03-01: Argonaut 505 #732

The first Saturday in March is traditionally the CTARC flea market. There was an Argonaut 505 and two Icom IC-2Es on the "free" table. I donated R100 to the club, walked away happy.

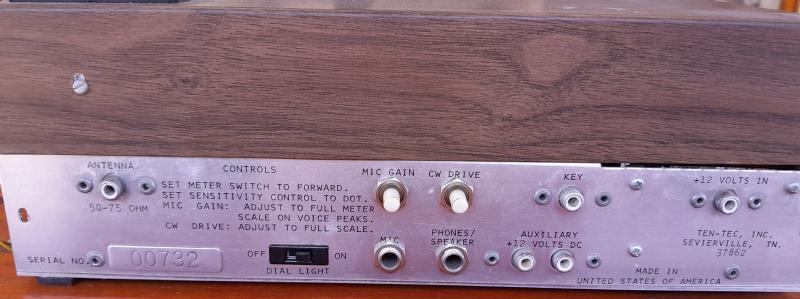

This one is Serial #732, missing the side plates but otherwise complete and appears to be totally original and unmolested. I'm using one of the other radios as a sideplate donor, this one is going to be the 100% stock reference model.


Triton II

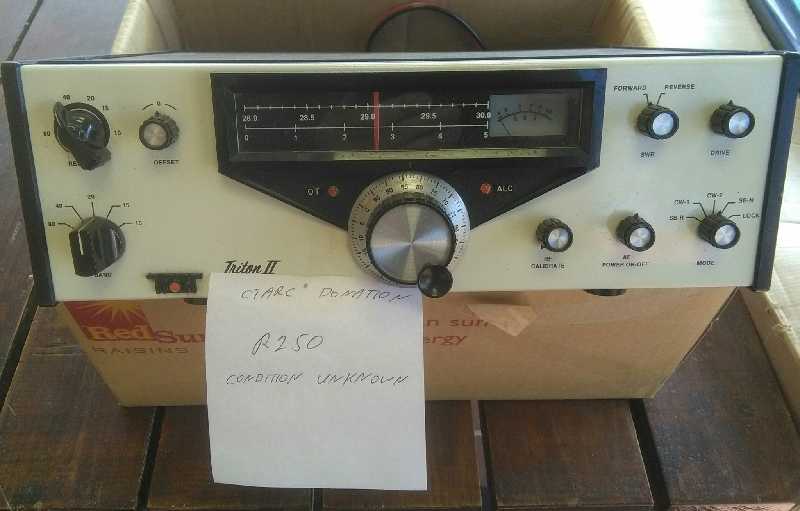

I bought a Triton II from the CTARC.

Triton IV

A friend up in Div 6 found a Triton IV with a 252G PSU. It's supposed to be dead, Idunno, I will have to investigate. Serial Number 544-0316.
