Early in-line memory modules

IMG_9817r

Predecessor of the SIMM?

IMG_9816r

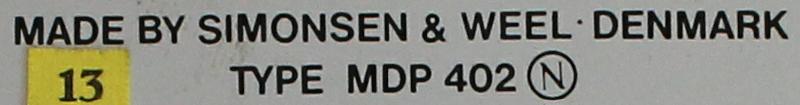

This comes from a piece of medical equipment made by the other S&W, Simonsen & Weel, Denmark, circa 1979.

IMG_9769r

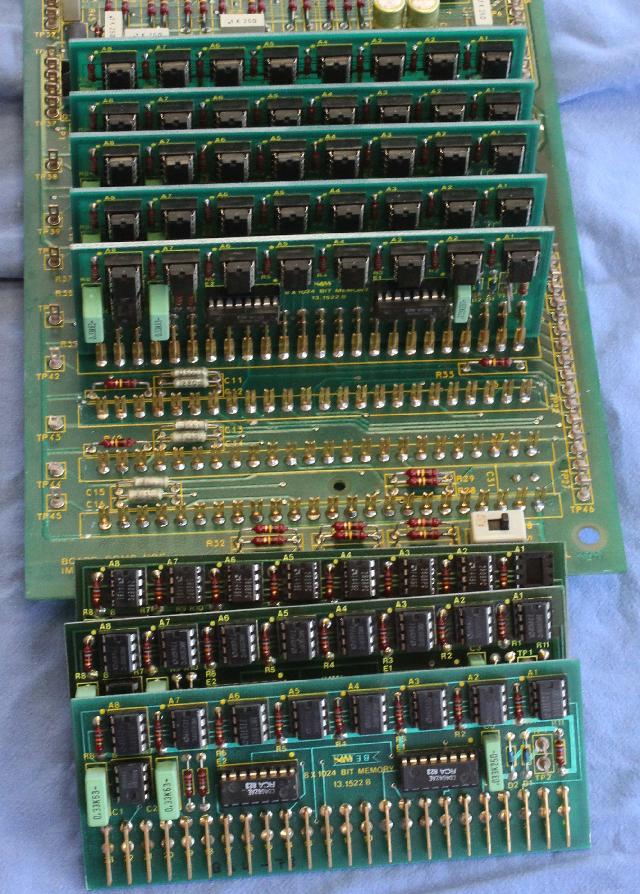

Each module has 8 x AM2808PC 1024-bit dynamic shift registers, driven by a DS0025CN two-phase clock driver. That’s one kilobyte of storage per module, and you have to keep on clocking the data around the ring otherwise the capacitors making up the memory discharge and forget.

It’s a lot simpler than a mercury delay line memory, but functionally it’s not that much different.
