Montedel C2-670 Remote Control Unit

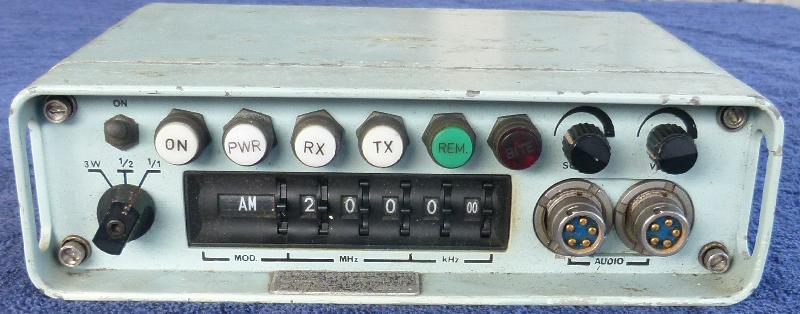

front view

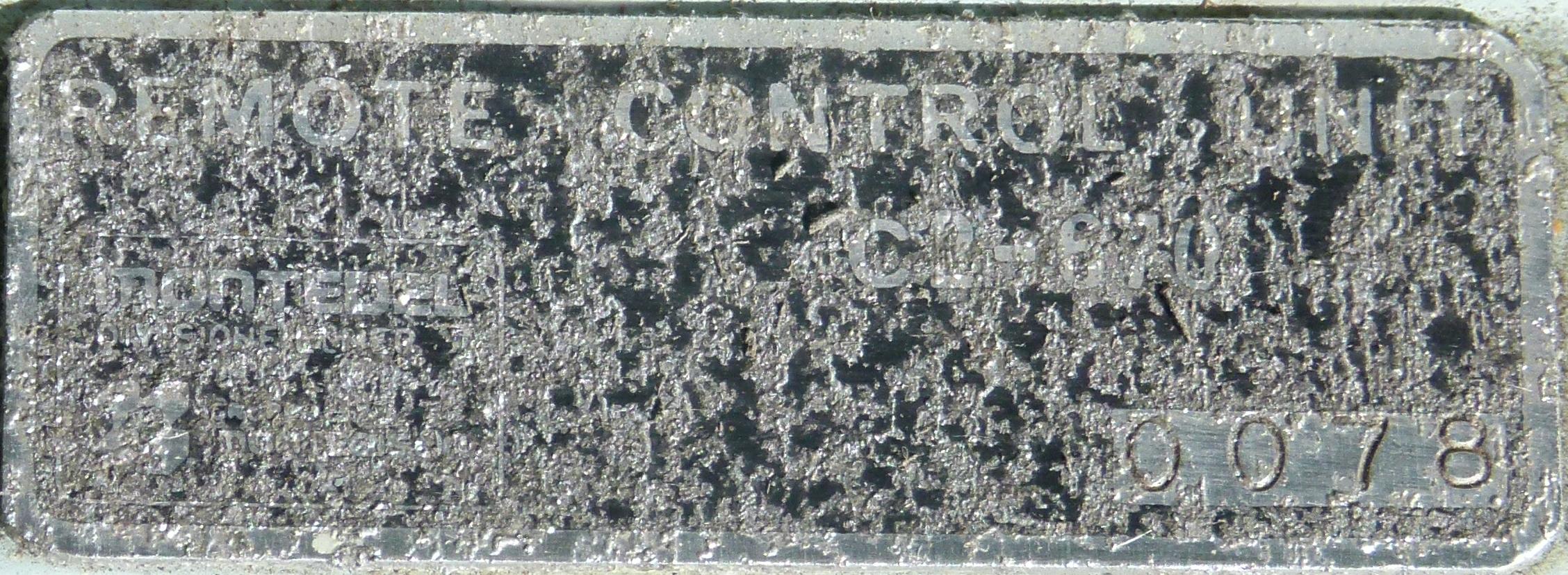

tally plate, serial 0078

This is a Montedel C2-670 Remote Control Unit, serial number 0078.

Montedel is (or was?) a member of Gruppo Montedison.

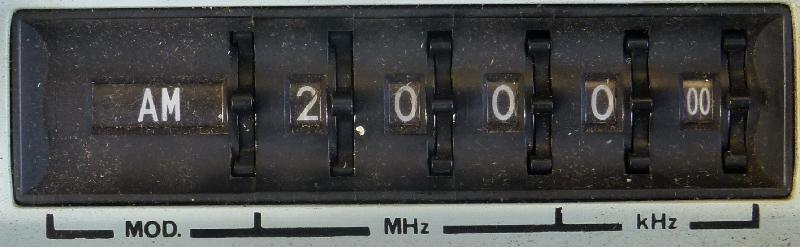

AM 200.000

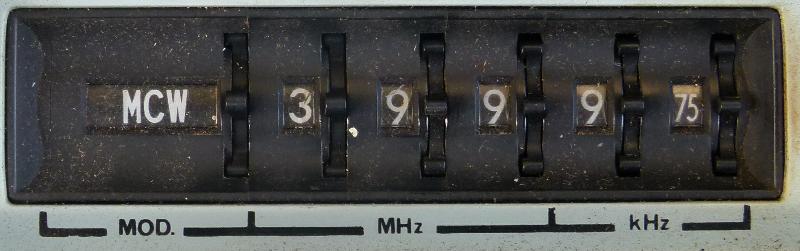

MCW 399.975

Modes (of the unit being controlled, of course) are AM and MCW, and the range seems to be 200 to 399.975 MHz in 25 kHz steps. Although that decimal point is misleading.

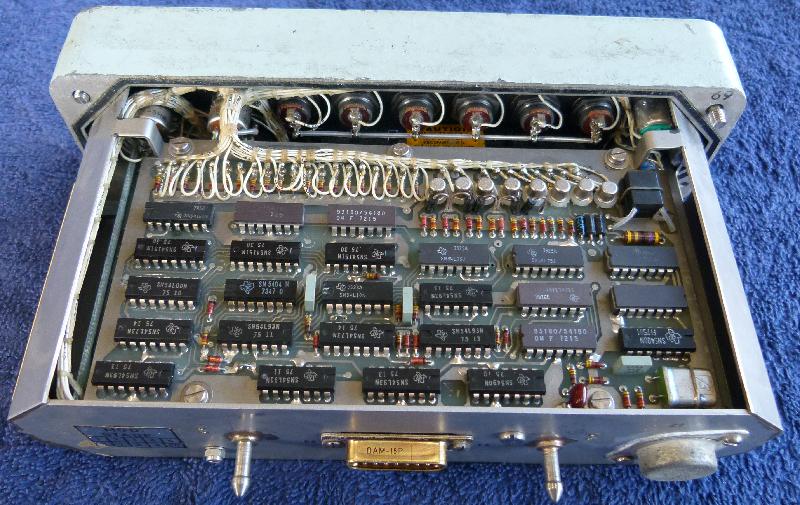

top view

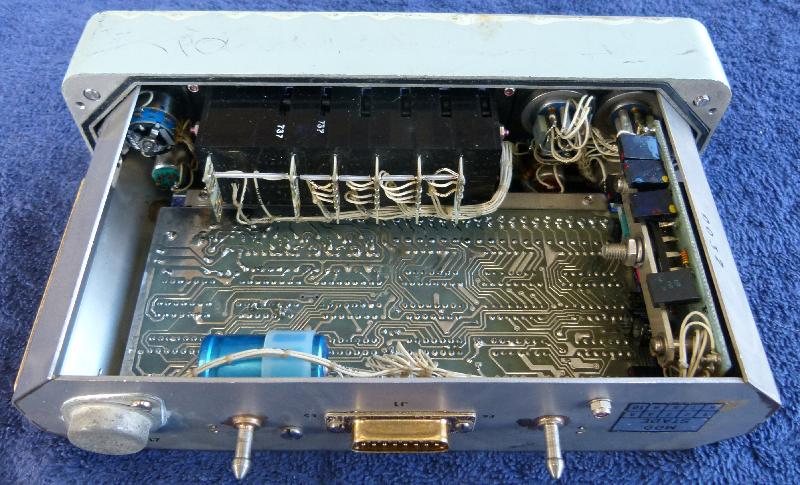

bottom view

It's all TTL, 54xx Military temperature range. I'd say it's probably just a long shift register that shifts the switch settings out and the lamp setting in in some way.

I suspect the "69" is the date of manufacture.
