Wouter's Pinball Machine: A 1975 Gottlieb Top Score

1999-12-24: I bought the Top Score locally, for R1000. I was assured that everything works 100%, but I can't
get the flippers or anything on the playfield to work yet.

The Top Score is a really nice example of an EM pinball machine -- in addition to the two bumpers it has two
sinkholes, a star rollover switch, a spinner, and a return lane that returns the ball to the shooter lane.

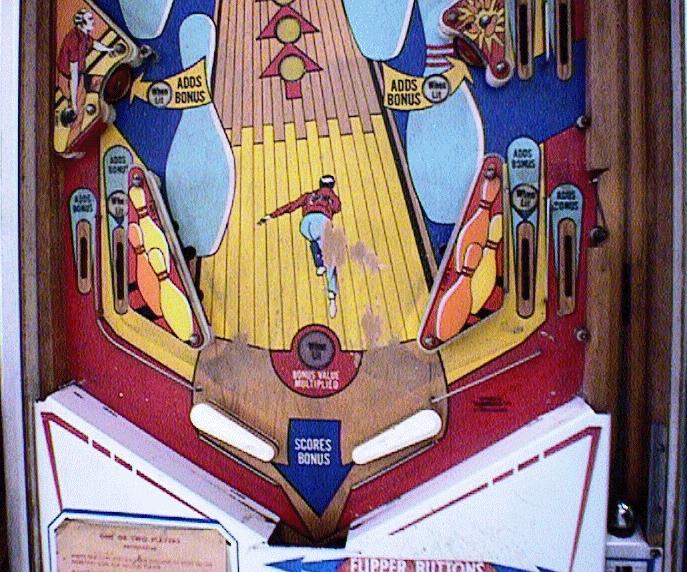

The playfield is quite worn -- although I have seen much worse. If you're not in a hurry, here's a picture of the playfield (100k).

1999-12-30: I found the problem -- One of the make-break switches on the "AX" relay was badly bent. Fixed that,
and the game mostly works. But it needs a good cleaning -- all the switches are extremely dirty, probably the result
of a well-intentioned previous owner using Q20 (local WD40 equivalent) to "clean" the switches.

2000-08-16: I'm now seriously starting to fix this game up. I sprayed the back of the backglass with lacquer to
stop the peeling, also masked / sprayed the score window area white. The translucent white and red areas don't look
very good, I've been told that this is typical of Gottlieb games.

OK, so I have the playfield off, and I'm taking an inventory of which coils are burnt and what other parts I need to fix
up this game properly. Will replace all coil sleeves and rubbers, and clean everything up - the goal is to have a machine
that I can play, that looks good in the living room (HAH!, as if my wife's going to fall for that :-)

2000-10-09: The parts that I had ordered from Steve Young arrived on Saturday. I stripped and cleaned the motor,
and removed the playfield plastics. Straightened the plastics with a hair dryer. Tedious, but it works.

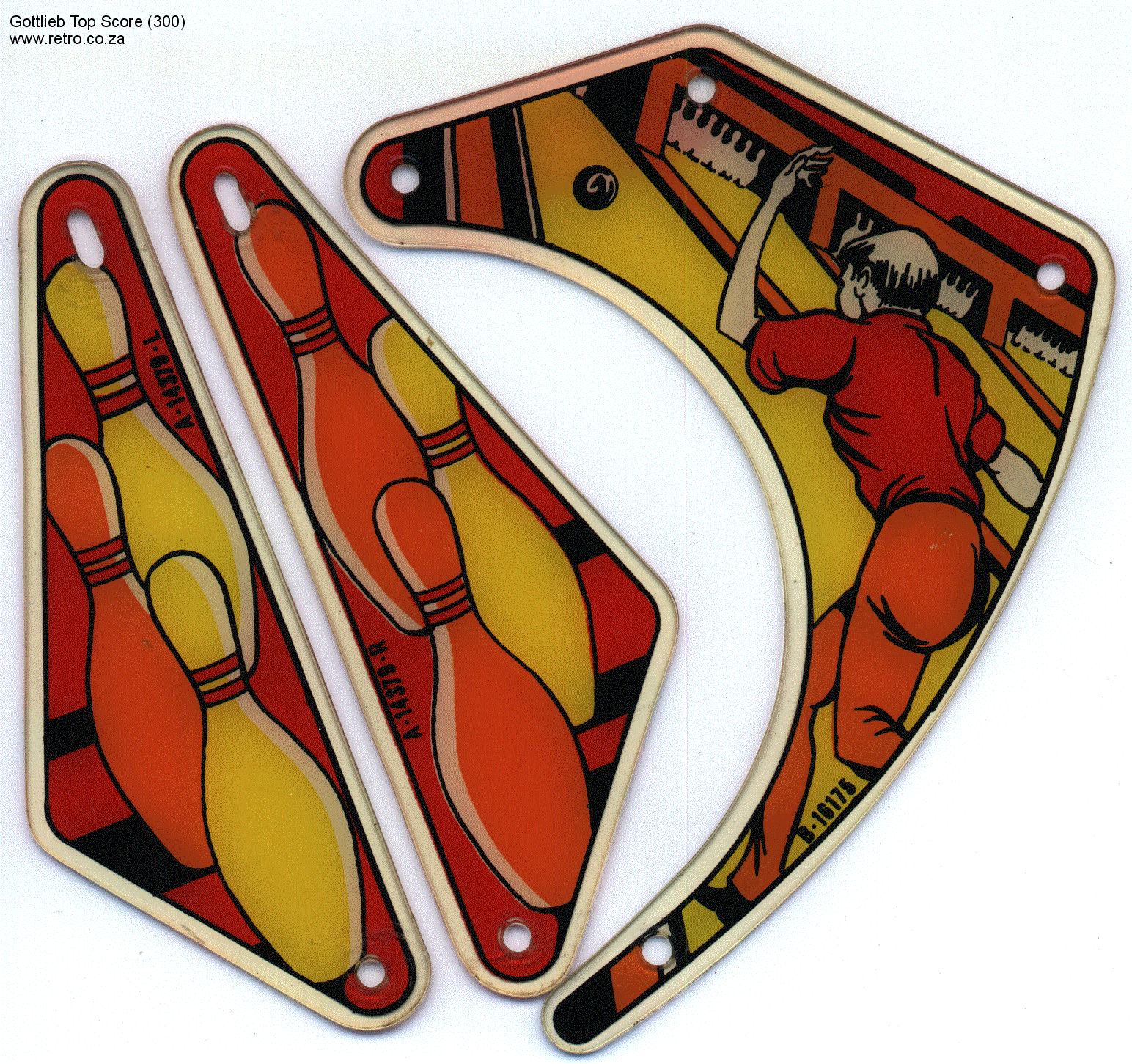

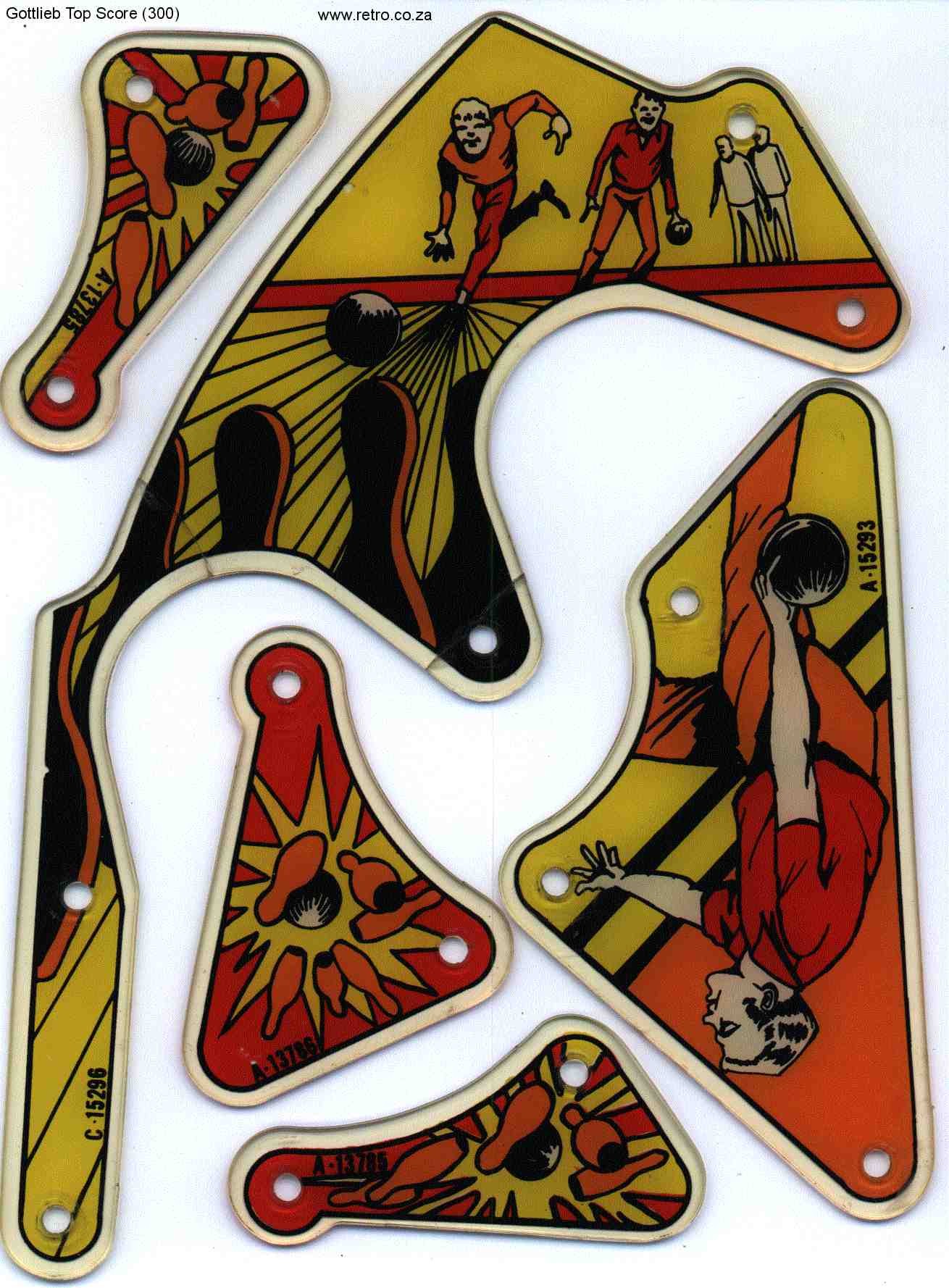

Since I have the playfield plastics off, I scanned them. Maybe someone can use them to reproduce playfield plastics.
Lemme know if you do...
plastic1.cpt (2.2MB) and plastic2.cpt (1.8MB)

I've stripped most of the stuff off the top of the playfield, and started on the flippers. I plan to clean the playfield and
spray it with clearcoat, I don't know if I want to try to restore the paint yet.

2000-10-13: Last night I disassembled the pop bumpers. I'll need at least one set of yokes and a spring. I think the
coil on that pop bumper is also not standard.

I've got almost all the bits off the top of the table by now, will try to locate some naphta over the weekend.
