ICL Personal Computer, 1984

This strange beast is 8088 based, but it is most definitely not a PC.

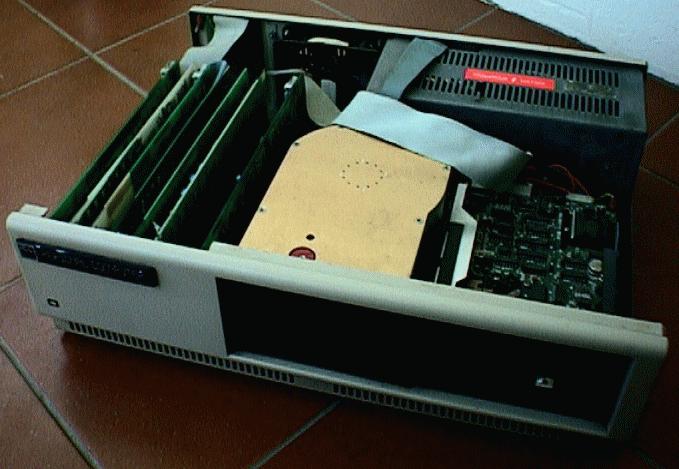

(Old picture) The computer case contains a passive backplane with seven cards: CPU, FDC, 3 x memory, interface, and serial. In addition to this, there's a board located under the MFM (?) hard drive which controls the HDD.

This computer is obviously meant to drive four serial terminals. I havn't fired it up yet, will do so when I get a chance.

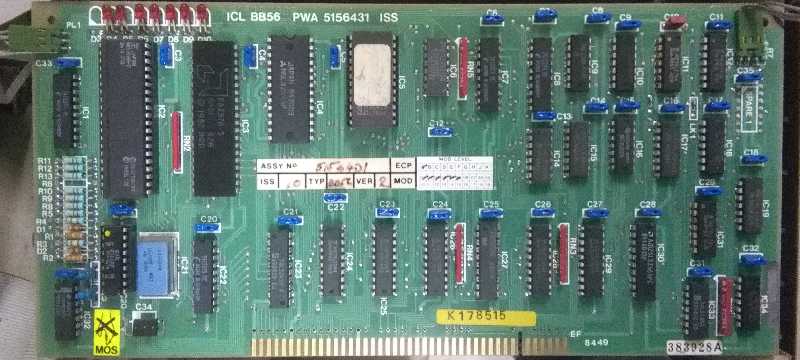

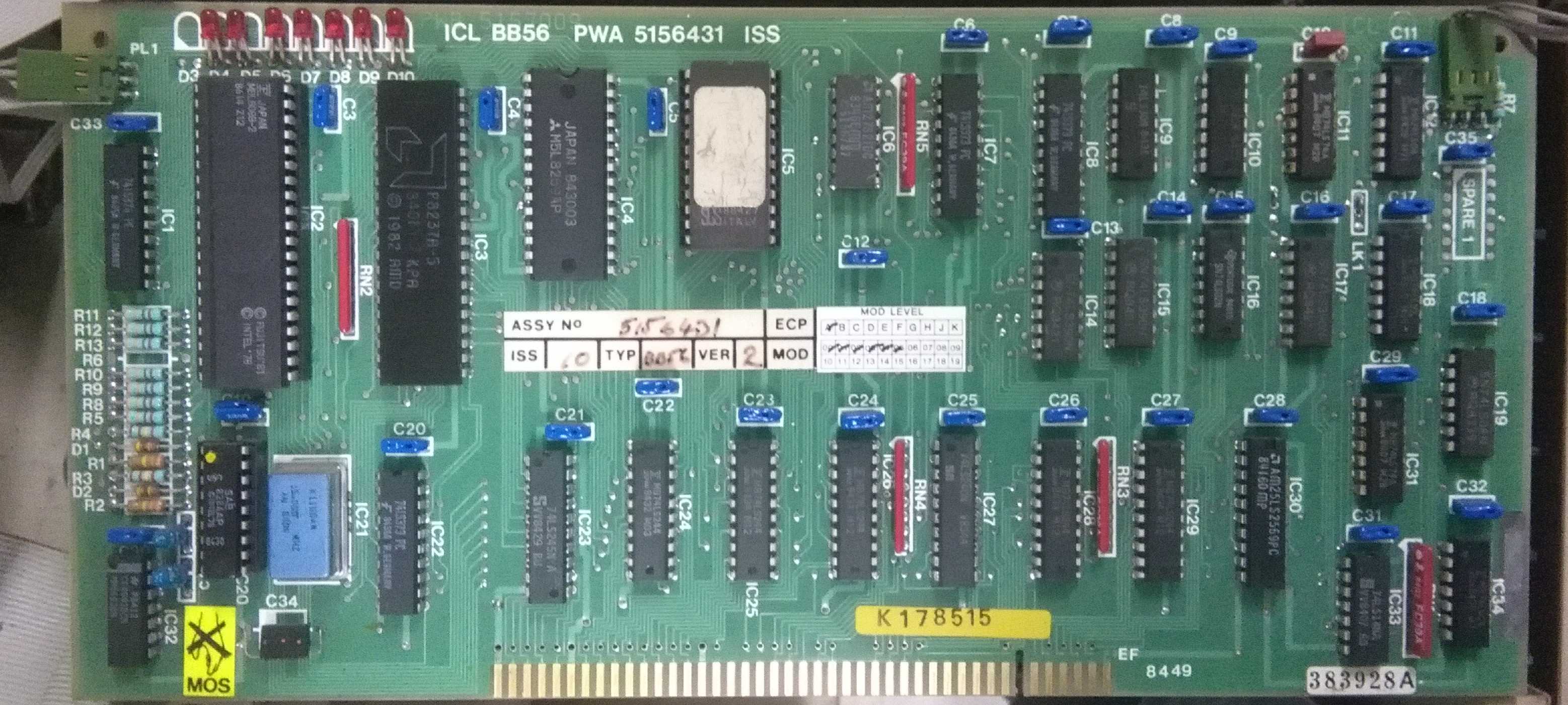

CPU board top view

The CPU board lineup is 8088, 8237 DMA Controller, 8259 Programmable Interrupt Controller, BIOS in EPROM, and a fair amount of glue logic.

The BIOS contains the following text:

ICL Personal Computer (Firmware Vn. 1.4 02 Feb 84)
Copyright (C) 1984, ICL Plc.
    (Johnson-Laird Inc.)

Performing Hardware Self-Test.
==============================

Andy Johnson-Laird

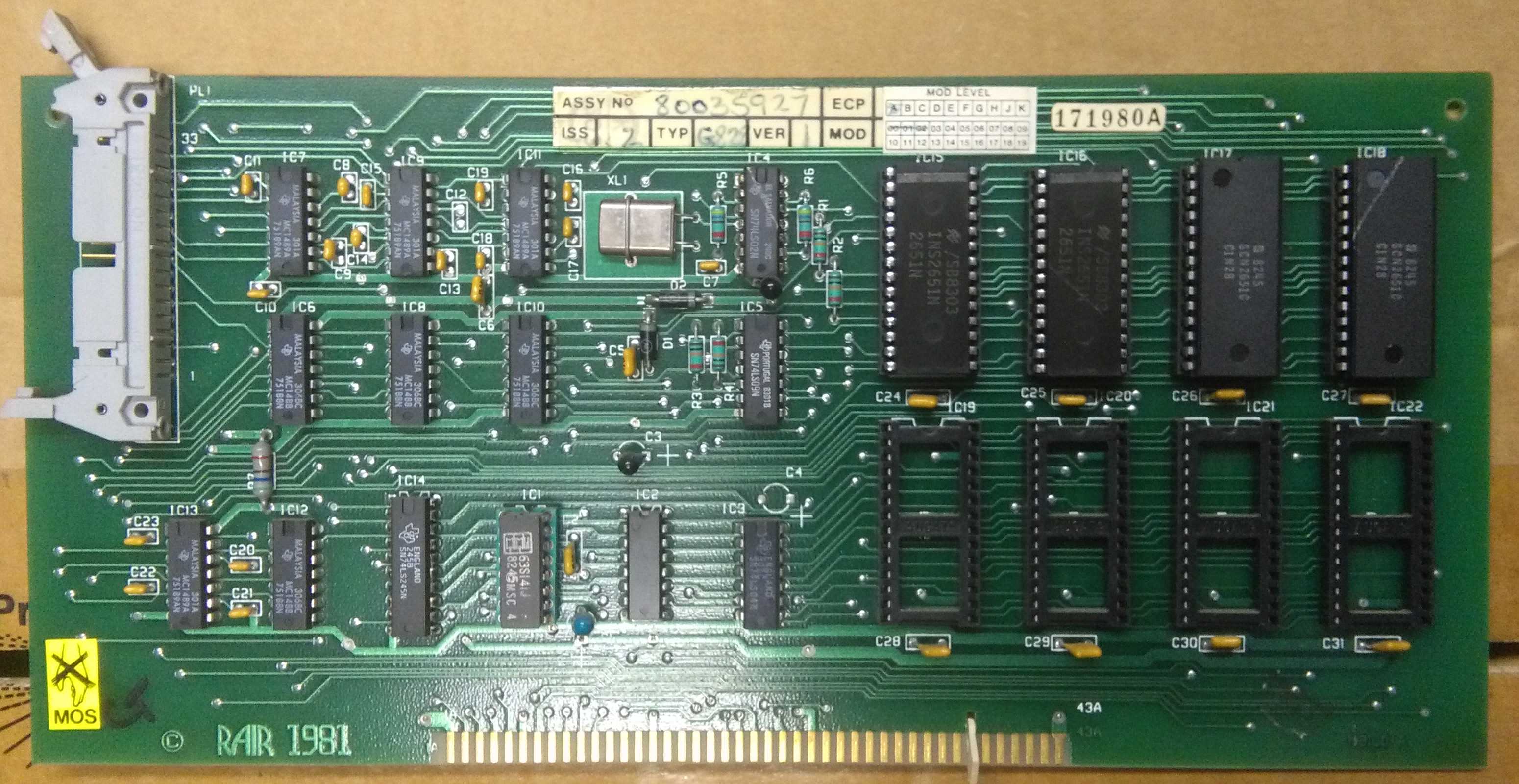

Quad UART board top view

The serial board has four 2651 Programmable Communications Interfaces and four sockets maybe for an additional four PCIs? 4 x 1488 and 4 x 1489 gives enough RS-232 for eight ports with RxD, TxD, RTS and CTS, or four ports with full handshaking support.

The PCB mentions RAIR (see also the comp.os.cpm post further down). The 1981 date means this is probably the same board as was used in the earlier 8085-based systems.

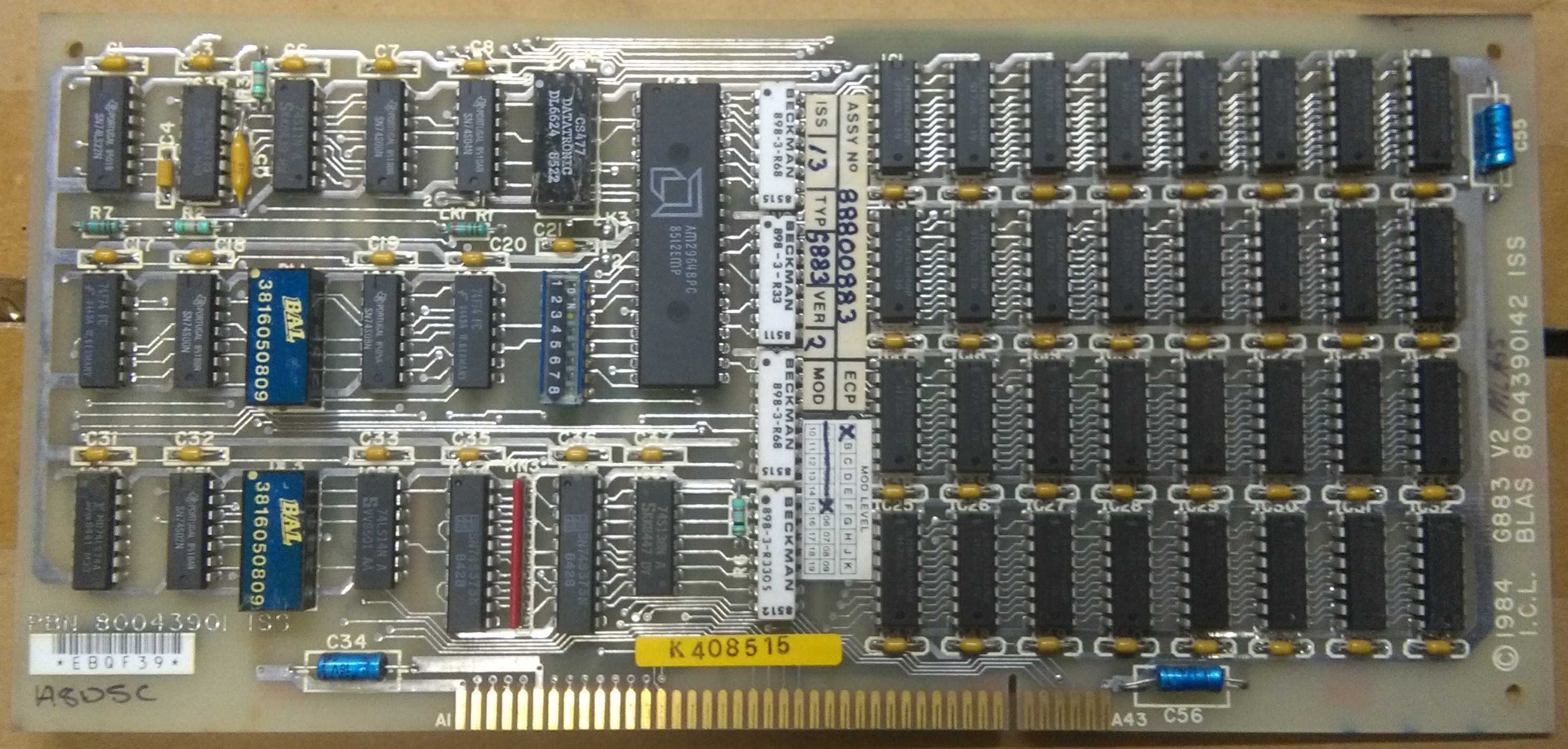

RAM board 1 top view

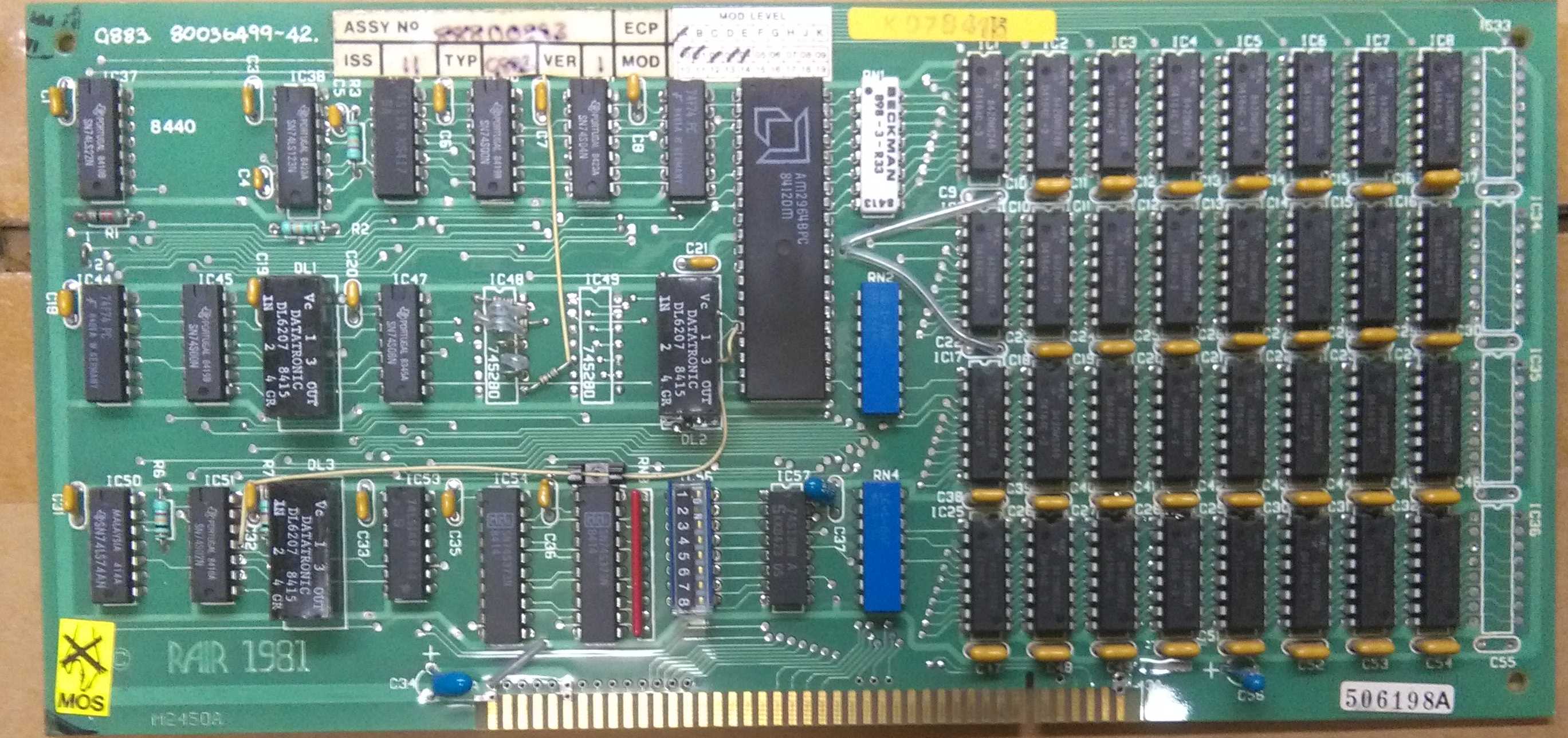

RAM board 2 top view

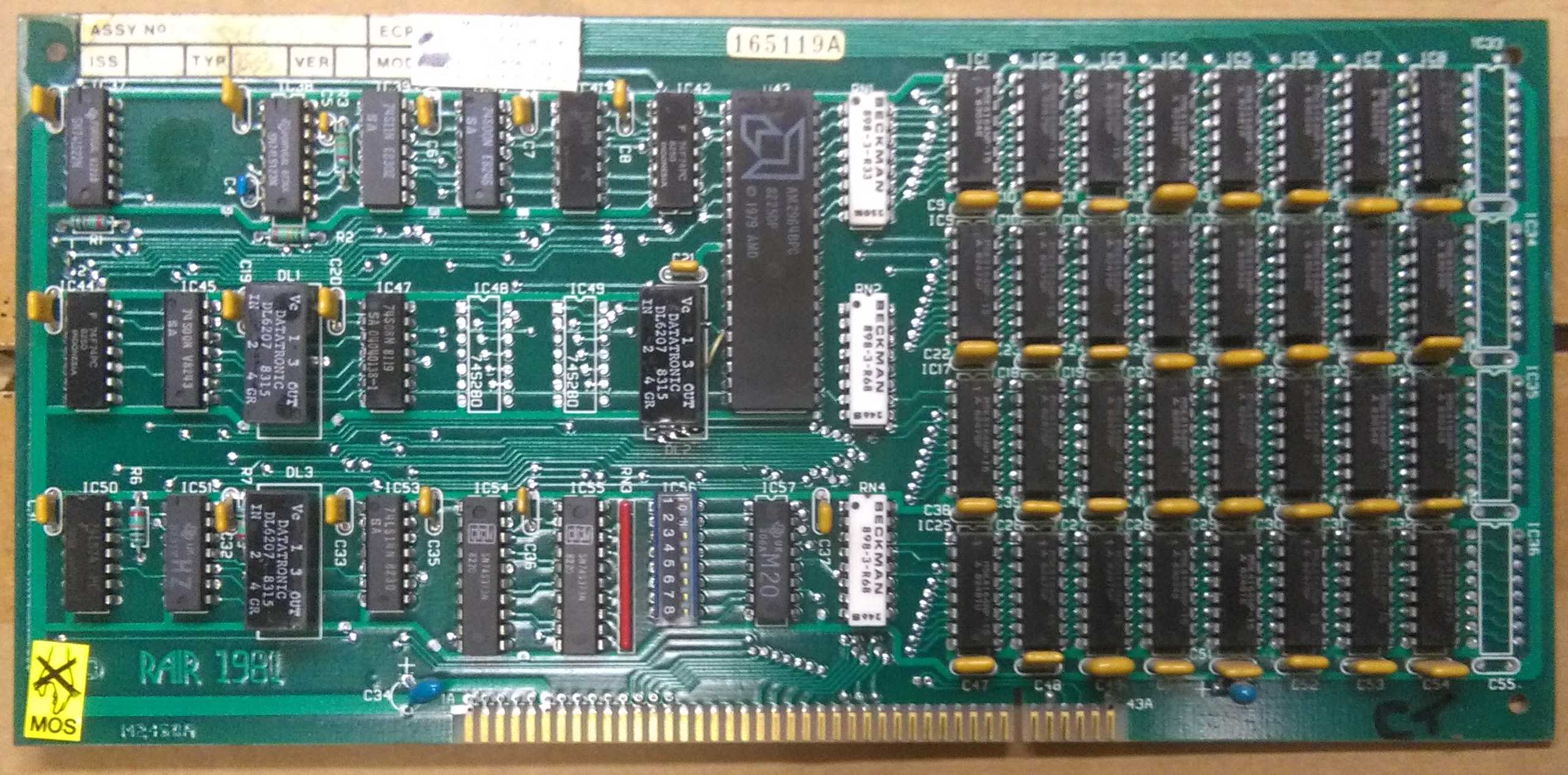

RAM board 3 top view

The three RAM boards are similar but not the same. At first it looks like boards 2 and 3 are a later design, with provision for parity chips, but board 1 carries a 1984 ICL date, as opposed to the 1981 RAIR date of boards 2 and 3. Board 2 has a number of innovation jumpers, this was fixed for board 3.

All three RAM boards have four banks of 4164s for 256k each, 768k total.

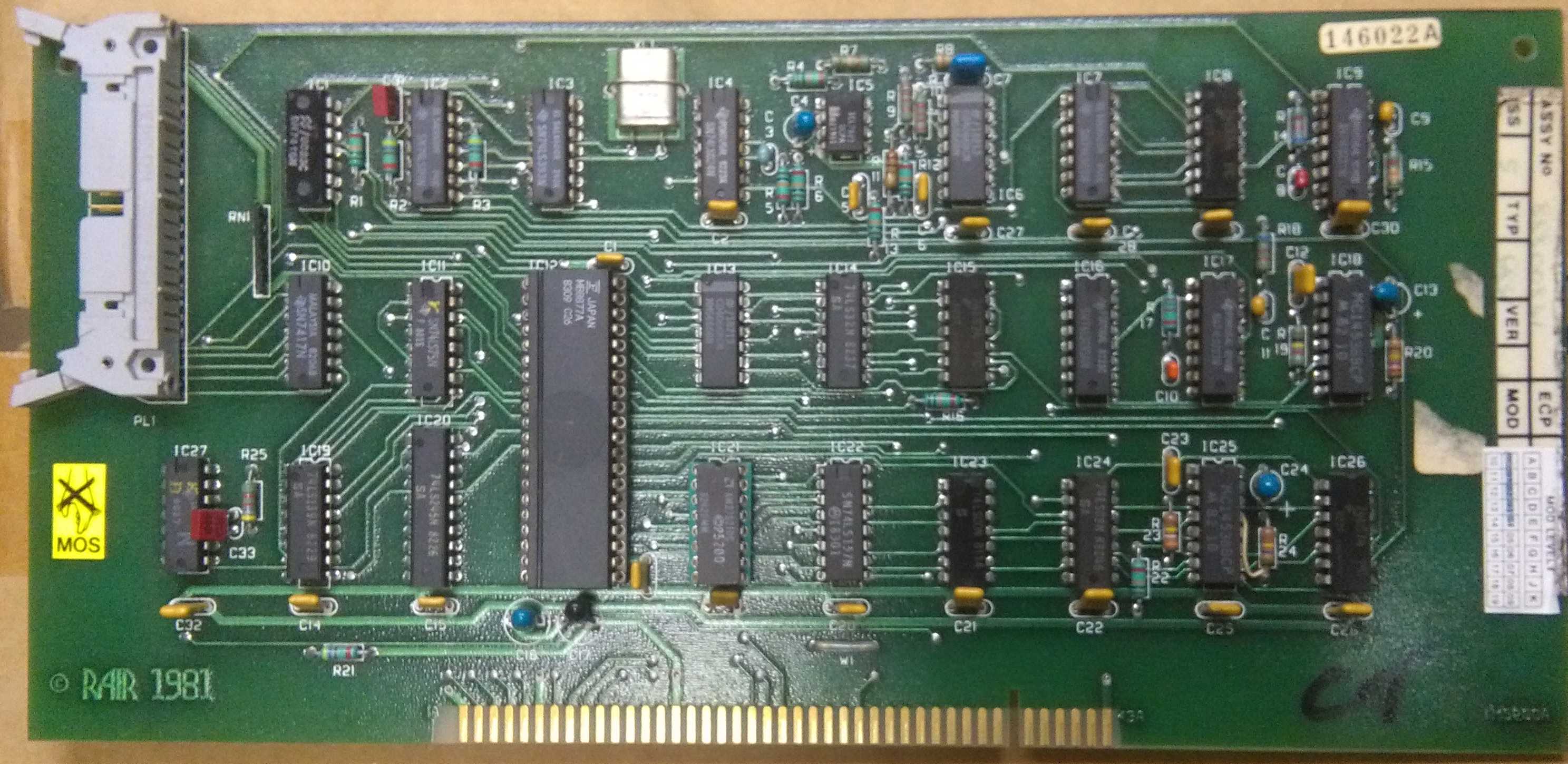

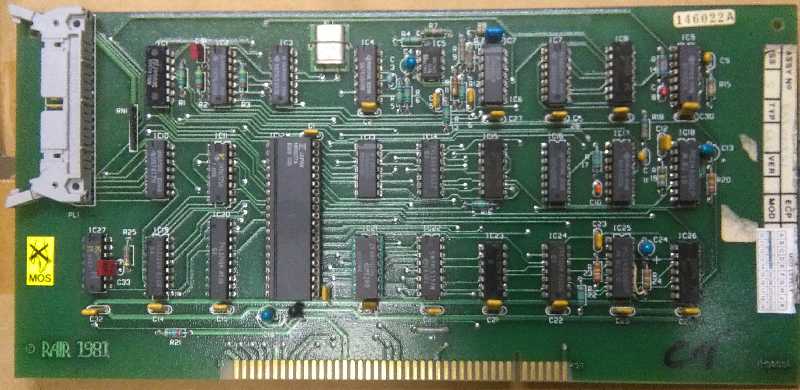

Floppy Disk Controller board top view

The FDC is conventional, with an MB8877A which is basically a WD1793. Also a 1981 RAIR PCB.

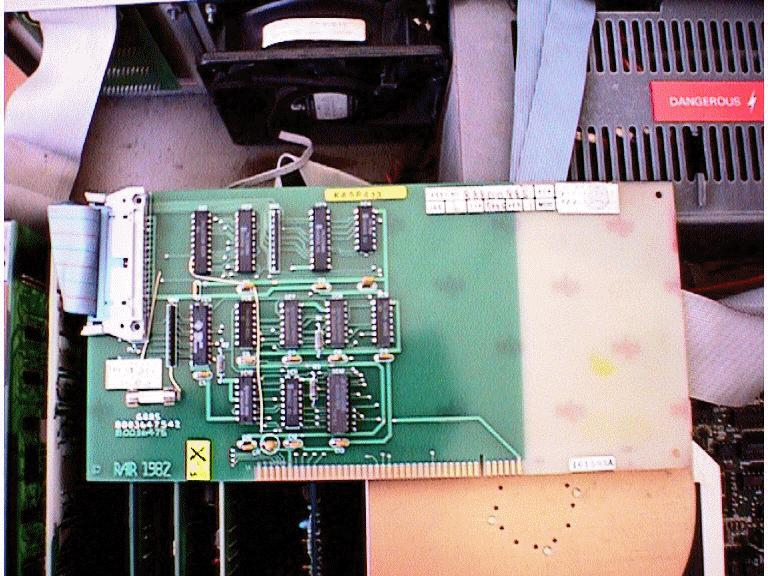

(Old photograph) The cable from the interface board runs to the Hard Drive Controller and to a socket on the back of the case. There's not much on the interface board, TTL and one PROM presumably for address decoding. RAIR 1982.

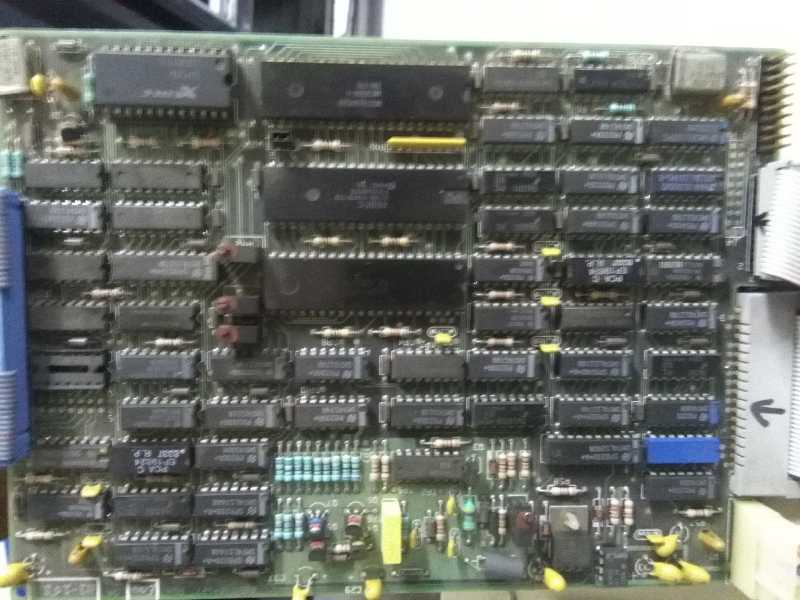

The Hard Drive controller features an MK3880, a.k.a. Z-80. The interface to the hard drive looks pretty much like your basic ST-506.

The cable from the interface to the Hard Drive Controller is also routed to this connector (but I'm pretty sure it's not SCSI).

I think it's clear that the basic RAIR Black Box design didn't change much, ICL just dropped an 8088 in there for this version.
