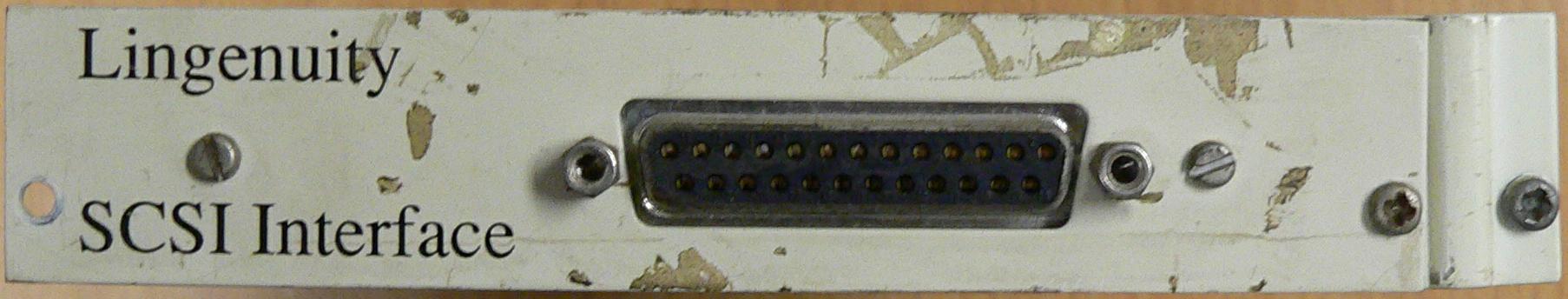

Acorn Archimedes Lingenuity SCSI interface

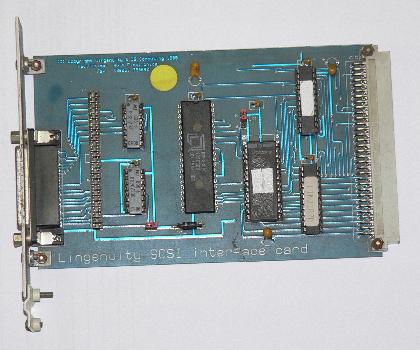

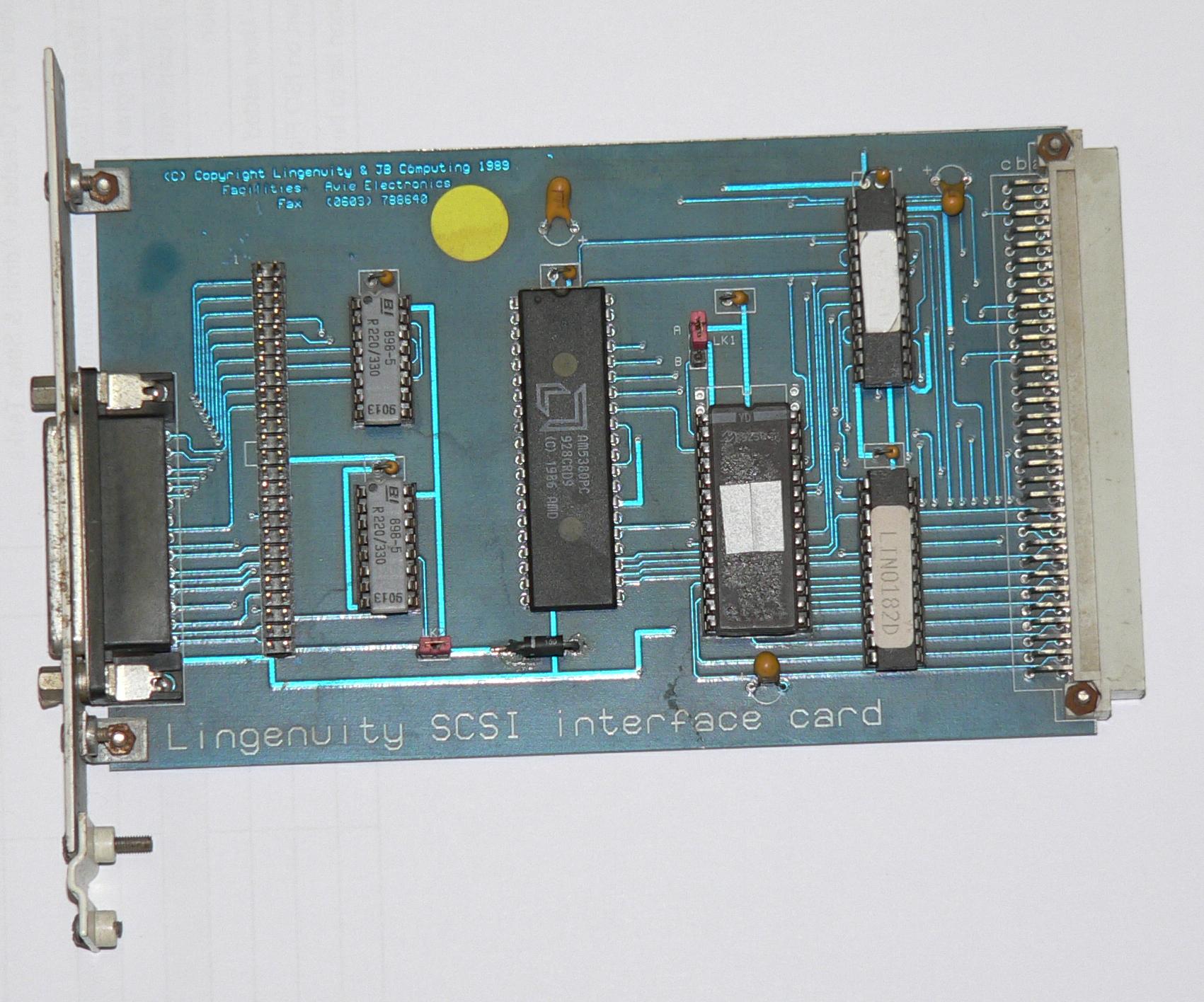

Lineup is two PEEL22CV10P (I assume they're the same, I removed the blank label from the one but left the label "LIN0182D" on the other), a 27C512 EPROM and an AM5380PC SCSI controller. Both PEELs have their security fuses blown. EPROM image here (SCSI Handler 2.54 dated 26 April 1994).

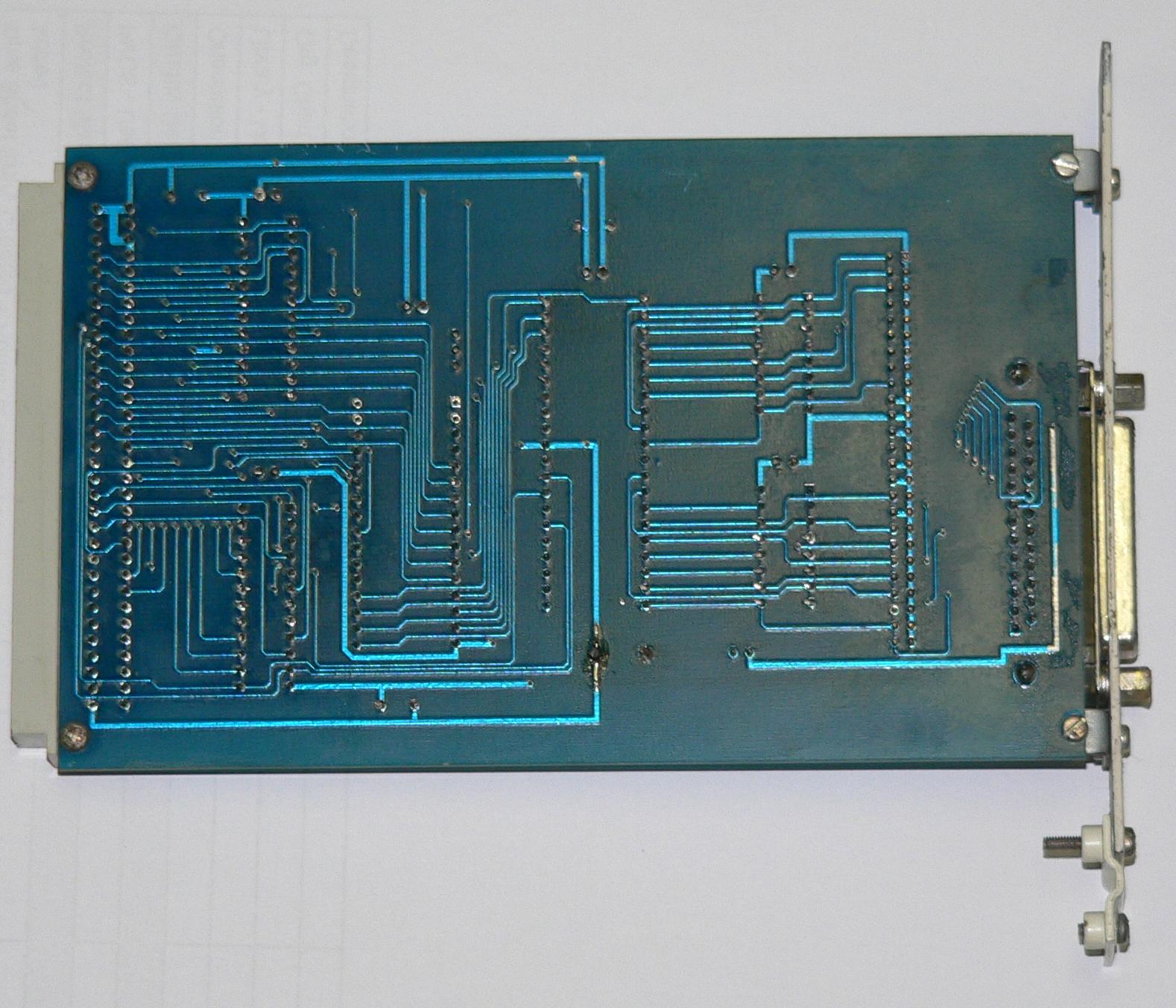

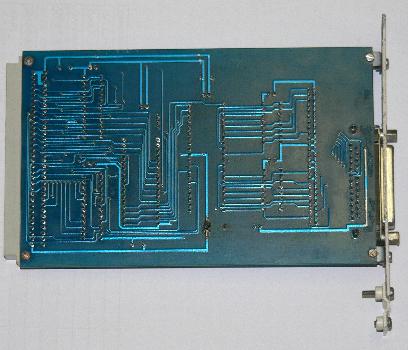

Text on the copper layer reads
(C) Copyright Lingenuity & JB Computing 1989
Facilities Avis Electronics
Fax (0608) 788640

This is going into the tchotchkes pile so if you need it let me know.
